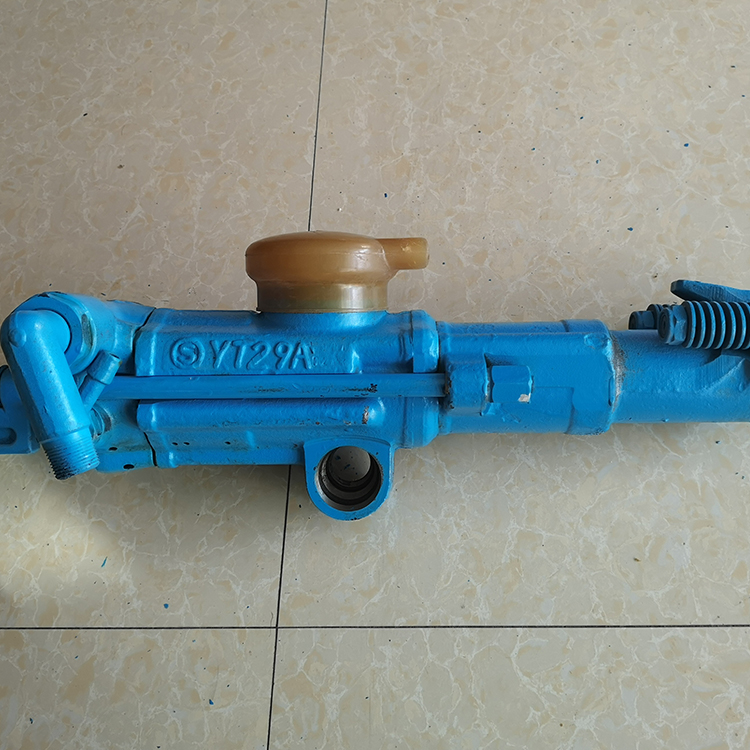

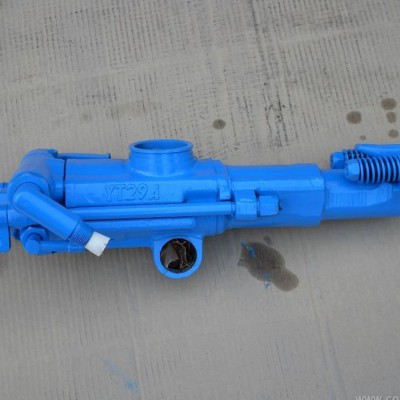

YT29A 型气腿式凿岩机是重型气腿式凿岩机，具有高效、低耗的特点，特别适用于铁路、公路、水电等建设施工中使用，也是冶金，煤炭等矿山巷道掘进及各种凿岩作业的换代产品。

YT29A型气腿式凿岩机适宜中硬和坚硬（f＝8～18）岩石上钻凿水平和倾斜孔，也可以向上钻凿喵杆孔，炮孔直径一般为34-45毫米，有效经济的钻孔深度为5米。根据巷道断面大小和作业条件可以配套FT160A型气腿FT160C型长气腿，FT160B型短气腿或FT170型气腿，也可以与钻车或钻架配套进行干、湿式凿岩。

YT29A gas-leg drill is a heavy-duty gas-leg drill with the characteristics of high efficiency and low consumption. It is especially suitable for railway, highway, hydropower and other construction. It is also a replacement product for mining roadway tunneling and various drilling operations in metallurgy and coal.

YT29A pneumatic drill is suitable for drilling horizontal and inclined holes on medium hard and hard (F = 8 ~ 18) rocks, or upward drilling meow hole. The diameter of the gun hole is generally 34-45 mm, and the effective and economical drilling depth is 5 meters. According to the section size and operating conditions of the roadway, FT160A air leg, FT160B short air leg or FT170 air leg can be matched with FT160A long air leg, FT160B short air leg or FT170 air leg, and dry and wet rock drilling can also be matched with drilling vehicle or drilling frame.

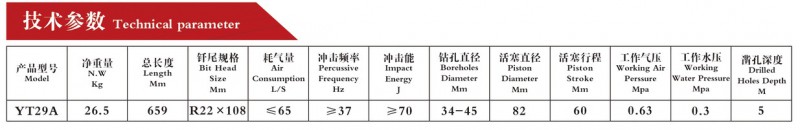

三、YT29A凿岩机的技术参数

型号（Type ）YT29A

机器重量（Weight）26.5 公斤(Kg)

机器长度（ Length ）            659×248×205 毫米(mm)

缸体直径（Cylinder dia）φ82 毫米(mm)

活塞行程（Piston stroke）60毫米(mm)

工作气压（Working pressure）0.4~0.63 兆帕(Mpa)

冲击能（Impact energy）≥70 焦耳(J)

冲击频率（Impact frequency）≥37 赫兹(Hz)

耗气量（Air consumption）≤65 升/秒(L/s)

工作水压（ Working water pressure）0.3 兆帕(Mpa)

气管内径（ Air pipe inner dia）φ25 毫米(mm)

水管内径（Water pipe inner dia）φ13 毫米(mm)

凿孔直径（ Rock drill hole dia）φ34~φ45 毫米(mm)

凿孔深度（Rock drill hole depth）5 米(m)

钎尾尺寸（Shank size）H22×108±1 毫米(mm)

扭矩≥16(0.5MPa) 牛.米(N.m)

工作气温-30～45度(℃)
