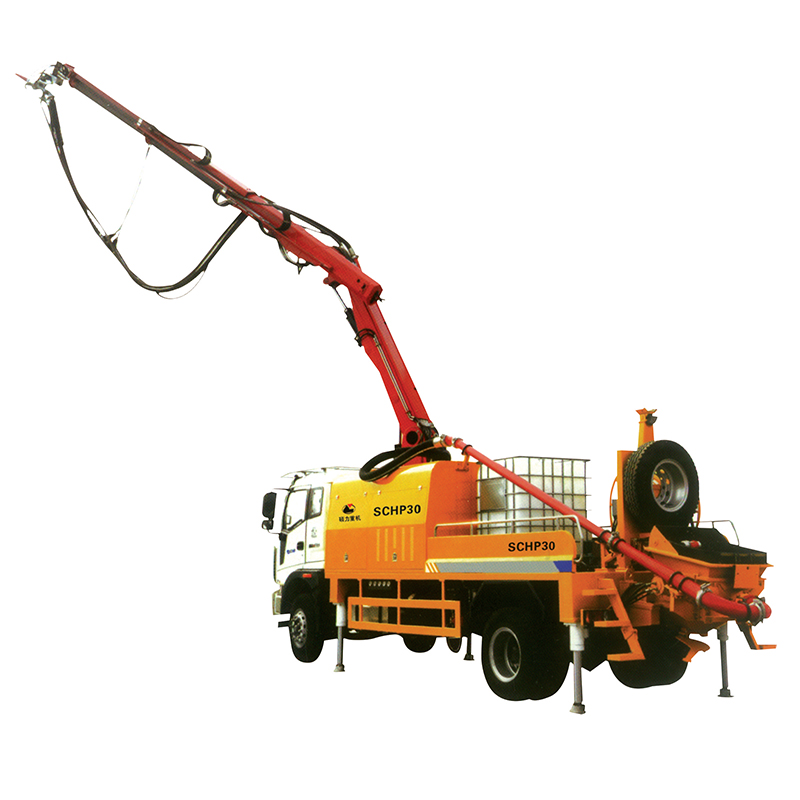

产品特点:

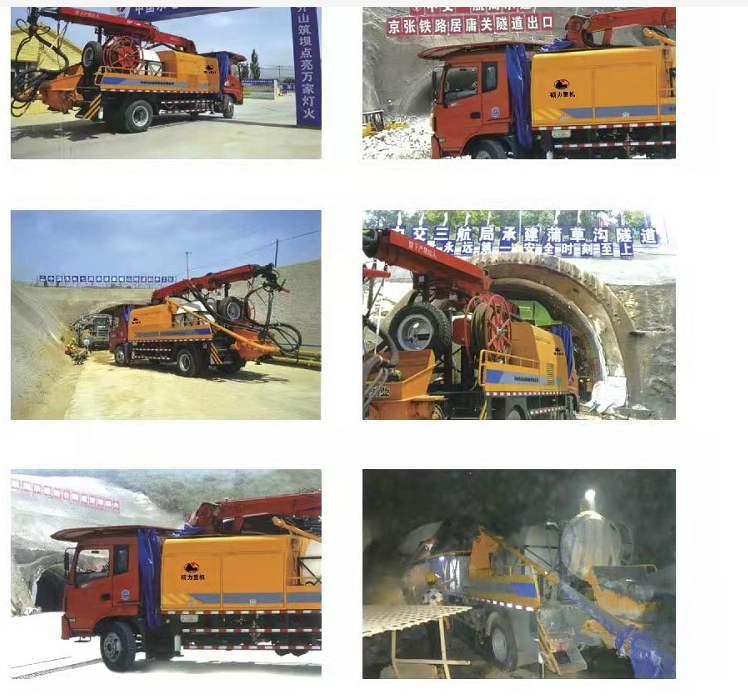

高品质液压泵送湿喷机的性能特点
The performance characteristics of high quality hydraulic pump to wet spraying machine
■配有自动润滑系统:对主要封部位采用自动润滑,油脂加注量、加注时间自动控制,大大延长易损机件寿命。Equipped wilh automatic utricabng system lle main seam parts adopt automatic lubrication, grease filing voh rne, injoction ,me automatic control, greatly extend the life of the vulnerable pats
高品质液压泵送湿喷机的性能特点
The performance characteristics of high quality hydraulic pump to wet spraying machine
■配有自动润滑系统:对主要封部位采用自动润滑,油脂加注量、加注时间自动控制,大大延长易损机件寿命。Equipped wilh automatic utricabng system lle main seam parts adopt automatic lubrication, grease filing voh rne, injoction ,me automatic control, greatly extend the life of the vulnerable pats
■工作效率高:采用液压泵送式,系统可靠性高,输送量稳定。可用于浆、充填、注、泵送等施工。
High eficiency: Le hydraulie pump type systemn reliability throughput and stability, Can be used to spray. filling, grouting pumping construction, etc.
High eficiency: Le hydraulie pump type systemn reliability throughput and stability, Can be used to spray. filling, grouting pumping construction, etc.
■易提件寿命长:主机易提件使用寿命长。
Parts, long service lile. host vuinerability of long service Life.
Parts, long service lile. host vuinerability of long service Life.
■喷射连续可调:主油泵采用变量柱塞,射速度可自由调节。
Injection quantty adjustable variable Distor pump isLised in the main oil pump, jet speed can be adu sted freely.
Injection quantty adjustable variable Distor pump isLised in the main oil pump, jet speed can be adu sted freely.
■速凝凝剂添加连续可词:可根据浆蚩无级调节。
Continuous ad ustabie accelerator content: can ba adjusted according to the quartity of shotcrete.
Continuous ad ustabie accelerator content: can ba adjusted according to the quartity of shotcrete.
■产品人性化设计:来用线控手柄,作更方便。
Product humanized design: the wire control handle,operation more convenient
三大关键技术
防粘技术:机内活塞强制泵送喂料,彻底解决料腔粘料问题
均匀稀薄流技术:三个料腔同时径向喂料,实现塑性混凝土管道内的均匀稀薄流输送
速凝剂添加与控制技术:计量泵计量准确可调,雾化射流与喷嘴高质量料流使得速凝剂与混凝土混合均匀
核心竞争力
高效率:综合工效高
高性能:喷层混凝土性能高(密实、匀质)
高可靠:设备可靠性高
低消耗:混凝土与速凝剂材料消耗低
综合优势
产品优势:结构独特、性能可靠、具有自主知识产权的湿喷机
成果优势:喷射混凝土材料、配合比、工艺技术、性能等方面的综合科研成果
服务优势:先进的服务理念,多层次、多方位的服务梯队,全面的湿喷技术服务
Product humanized design: the wire control handle,operation more convenient
三大关键技术
防粘技术:机内活塞强制泵送喂料,彻底解决料腔粘料问题
均匀稀薄流技术:三个料腔同时径向喂料,实现塑性混凝土管道内的均匀稀薄流输送
速凝剂添加与控制技术:计量泵计量准确可调,雾化射流与喷嘴高质量料流使得速凝剂与混凝土混合均匀
核心竞争力
高效率:综合工效高
高性能:喷层混凝土性能高(密实、匀质)
高可靠:设备可靠性高
低消耗:混凝土与速凝剂材料消耗低
综合优势
产品优势:结构独特、性能可靠、具有自主知识产权的湿喷机
成果优势:喷射混凝土材料、配合比、工艺技术、性能等方面的综合科研成果
服务优势:先进的服务理念,多层次、多方位的服务梯队,全面的湿喷技术服务

一、整机参數
|
||||
型号
|
单位
|
SGHP25/SGHP30
|
SGHP25C/SGHP30
|
CSGHP25D/SGHP30D
|
操作方式
|
轮式自行走
|
轮式自行走
|
轮式自行走
|
|
发动机功率
|
Kw
|
92
|
92
|
92
|
最大行驶速度
|
km/h
|
20
|
20
|
20
|
最小转弯半径
|
m
|
6.4/6.6
|
6.4/6.6
|
6.4/6.6
|
最大爬坡度
|
25°
|
25°
|
25°
|
|
最小离地距离
|
mm
|
300/350
|
300/350
|
300/350
|
制动距离
|
≤10m/22kmh
|
≤10m/22kmh
|
≤10m/22kmh
|
|
最大转向角
|
34°/33°
|
34°/33°
|
34°/33°
|
|
长
|
mm
|
7850/8450
|
7850/8450
|
7850/8450
|
宽
|
mm
|
2460(运输)/2600(工作
|
2450(运输)/2600(工作
|
2450(运输)/2600(工作
|
高
|
mm
|
3490
|
3490
|
3490
|
自重
|
kg
|
16000/17500
|
16000/17500
|
16000/17500
|
二、凝剂系统参数
|
||||
速凝剂泵型号
|
-
|
-
|
-
|
|
电机功率
|
KW
|
0,75
|
0,75
|
0,75
|
速凝剂系統压力
|
Pa
|
8/12
|
8/12
|
8/12
|
速凝剂箱容积
|
L
|
1000
|
1000
|
1000
|
三、机械手参数
|
||||
回转支撑型号
|
||||
臂架结构形式
|
伸缩+折叠+伸缩
|
伸缩+折叠+伸缩
|
伸缩+折叠+伸缩
|
|
喷射高度
|
m
|
16
|
16
|
17
|
喷射宽度
|
m
|
28
|
28
|
30
|
大臂俯仰角
|
30°~60°
|
30°~60°
|
30°~60°
|
|
小臂俯仰角
|
60°~37°
|
60°~37°
|
60°~37°
|
|
小臂摆动角
|
230°
|
230°
|
230°
|
|
喷头水平轴向旋转角
|
360°
|
360°
|
360°
|
|
喷头竖直轴向摆角
|
240°
|
240°
|
240°
|
|
四、底参数
|
||||
底盘型号
|
SJ25/5J30
|
SJ25/5J30
|
SJ25/5J30
|
|
轴距
|
mm
|
4230/4500
|
4230/4500
|
4230/4500
|
前桥轮距
|
mm
|
1896/1800
|
1896/1800
|
1896/1800
|
后桥轮距
|
mm
|
1896/1800
|
1896/1800
|
1896/1800
|
轮貽型号
|
16/70-20
|
16/70-20
|
16/70-20
|
|
轮胎直径
|
mm
|
1020/1070
|
1020/1070
|
1020/1070
|
前后桥驱动方式
|
液压
|
液压
|
液压
|
|
转向
|
四轮转向
|
四轮转向
|
四轮转向
|
|
五、砼缸输料系統
|
||||
工作驱动方式
|
电机驱动
|
电机驱动
|
电机驱动
|
|
电机功率
|
kw
|
75/55
|
75/55
|
75/55
|
电机电压
|
V
|
380
|
380
|
380
|
混凝土理论泵送次数
|
次/分钟
|
|||
泥凝土理论排量
|
m3/h
|
25/30
|
25/30
|
25/30
|
出口压力
|
Mpa
|
6
|
6
|
6
|
砼缸内径
|
mm
|
160/180
|
160/180
|
160/180
|
砼缸行程
|
mm
|
800
|
800
|
800
|
输送管径
|
mm
|
Φ125-Φ80
|
Φ125-Φ80
|
Φ125-Φ80
|
喷嘴嘴口直径
|
mm
|
Φ45
|
Φ45
|
Φ45
|
料斗上料高度
|
mm
|
1470
|
1470
|
1470
|
